ESPRIT EZ TECHNOLOGIES

ESPRIT Ez offers music lovers a lively, dynamic, uncompromising sound that captures the finesse and beauty of musical works.

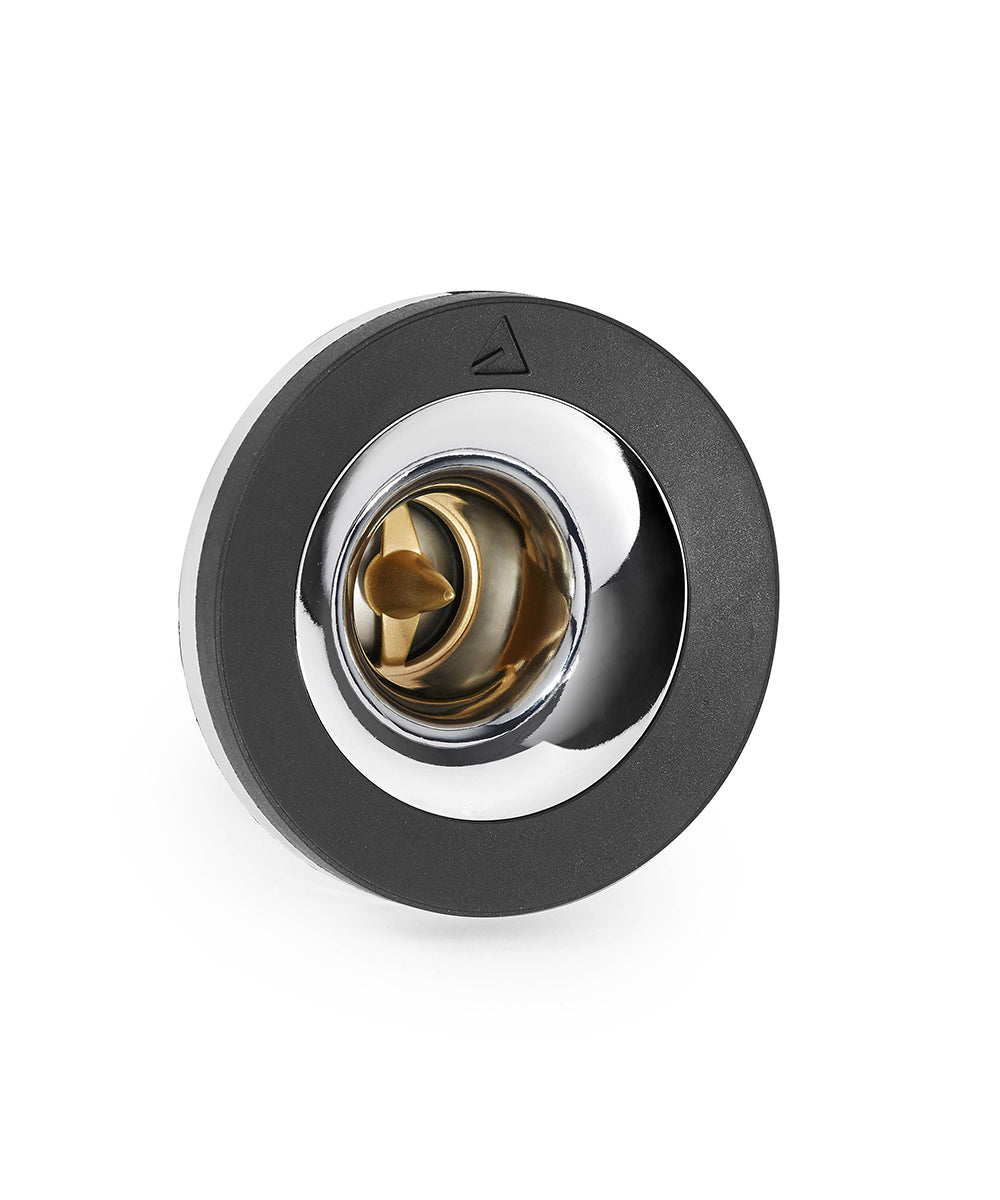

TWEETER TZ2550B

A real TRIANGLE trademark of technology and performance, the TZ2510B, is the latest incarnation of a titanium dome in combination with a compression chamber. This technology provides high efficiency with low distortion and excellent directivity. Studies from the Esprit project helped to develop a new profile of the horn and also improved the phase plug. It reduces the directivity and provides almost the same sound level throughout the room.

We have developed a compact engine with high magnetic power, by using a neodymium ring combined with an absorption chamber. The latter has been designed in view of stopping the propagation of the back sound wave and of reducing distortions. As a result, the high-pitched frequencies offer a more natural listening experience.

Natural cellulose paper cone

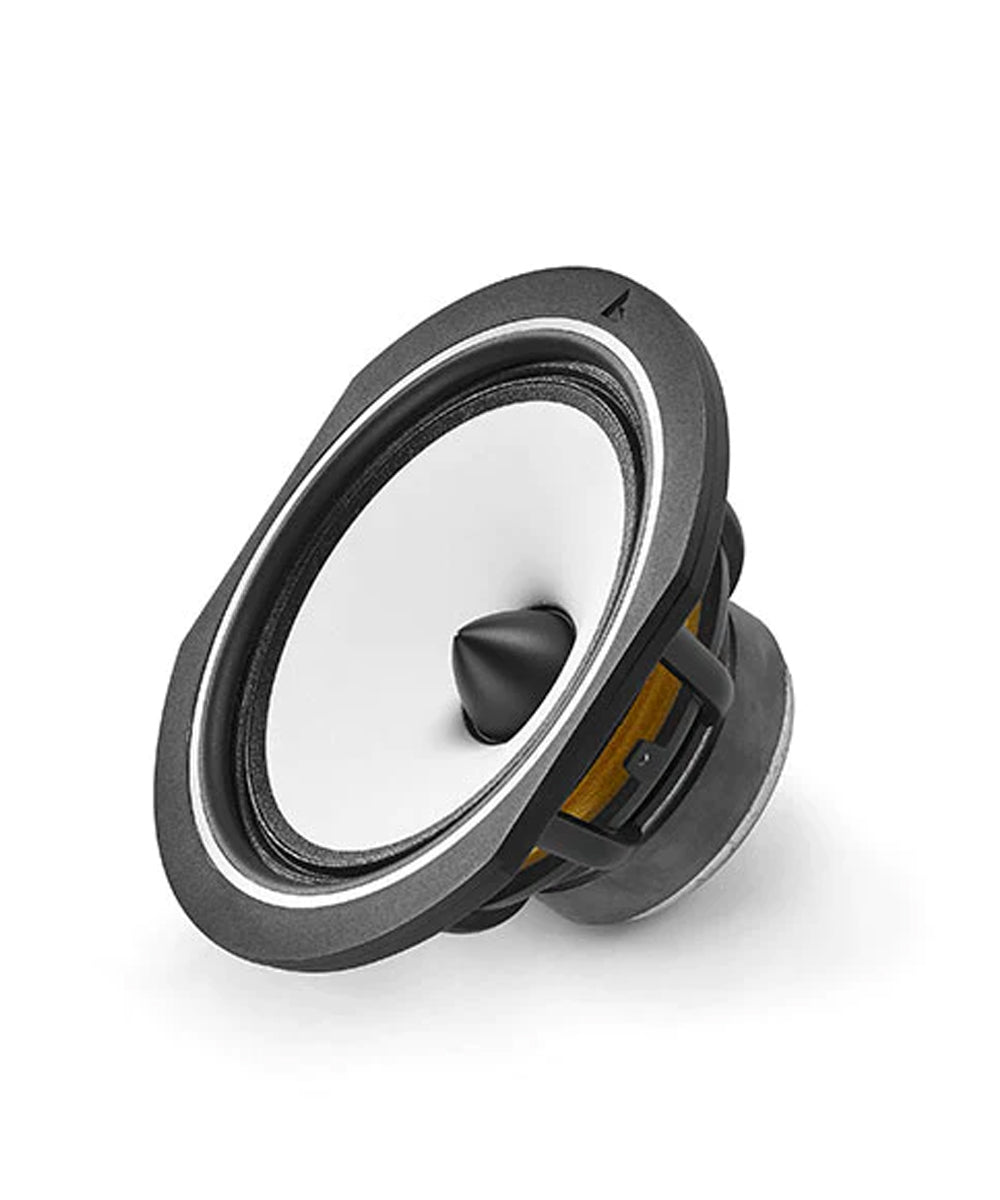

MIDRANGE DRIVER

Made out of 100% natural cellulose paper, white membrane is used to avoid any coloration. It is combined with a small pleat peripheral suspension to increase the emissive surface area.

Special attention has been paid to a number of details in the development of the midrange: the profile of the membrane, the shape of the suspension, and the new dust cap, are directly inspired from the MAGELLAN project. With the new ANTAL Ez, the mid-range driver increases to 165 mm to provide an even more open sound.

Overlay of textile material and fiberglass

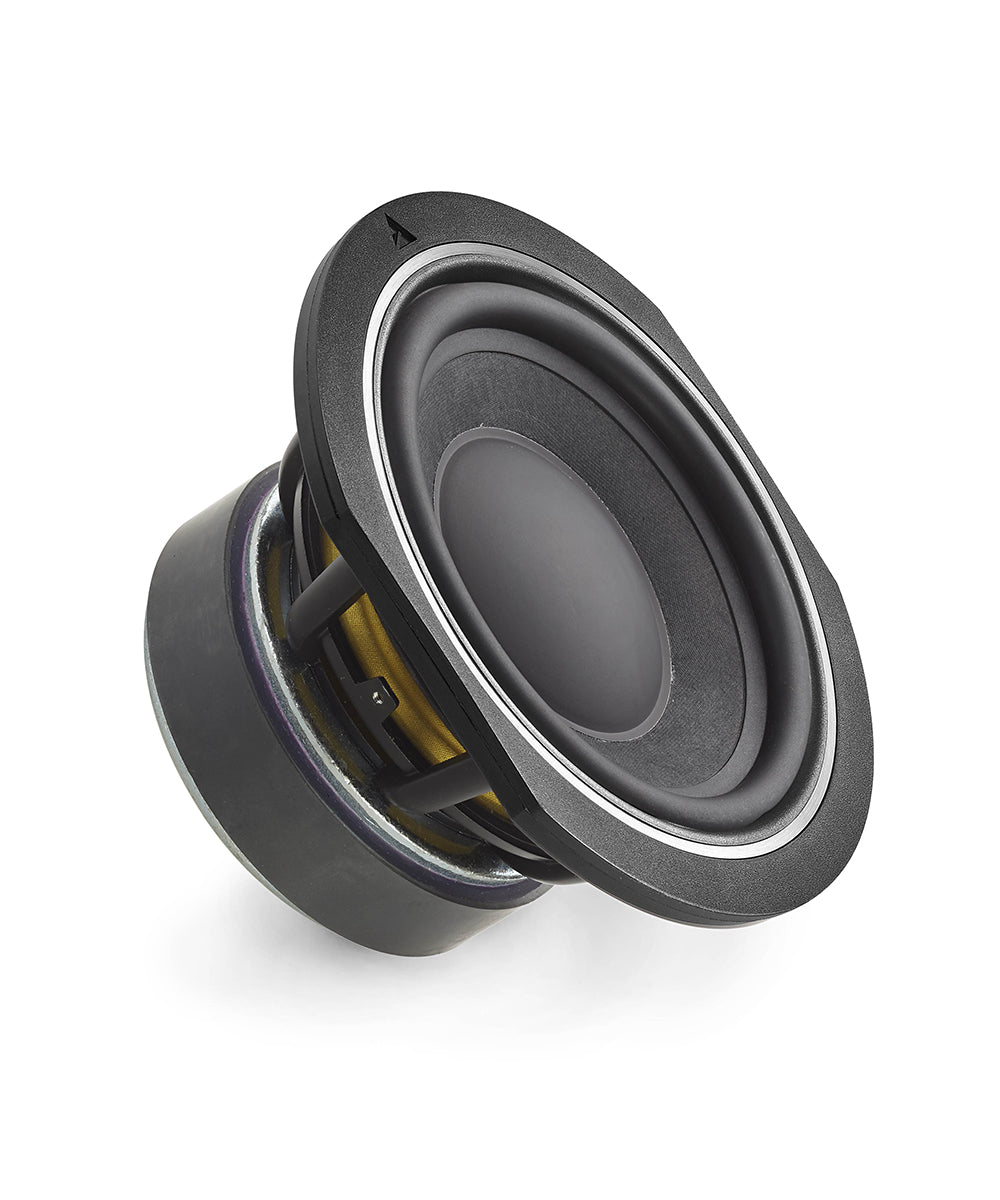

WOOFER

The MAGELLAN program showed the importance of how the bass driver influences the behaviour of the medium driver. We control the cone so it efficiently muffles any resonance in the «upper bass» area. Fiberglass was selected for its excellent affect on the lower midrange / higher bass.An ESPRIT Ez innovation is the overlay of textile material and fiberglass, which improves the rigidity of the membrane.

The speaker is equipped with a new chassis, which quickly dissolves the heat generated by the coil, and with a double ferrite to improve sensitivity.

Polyvalence

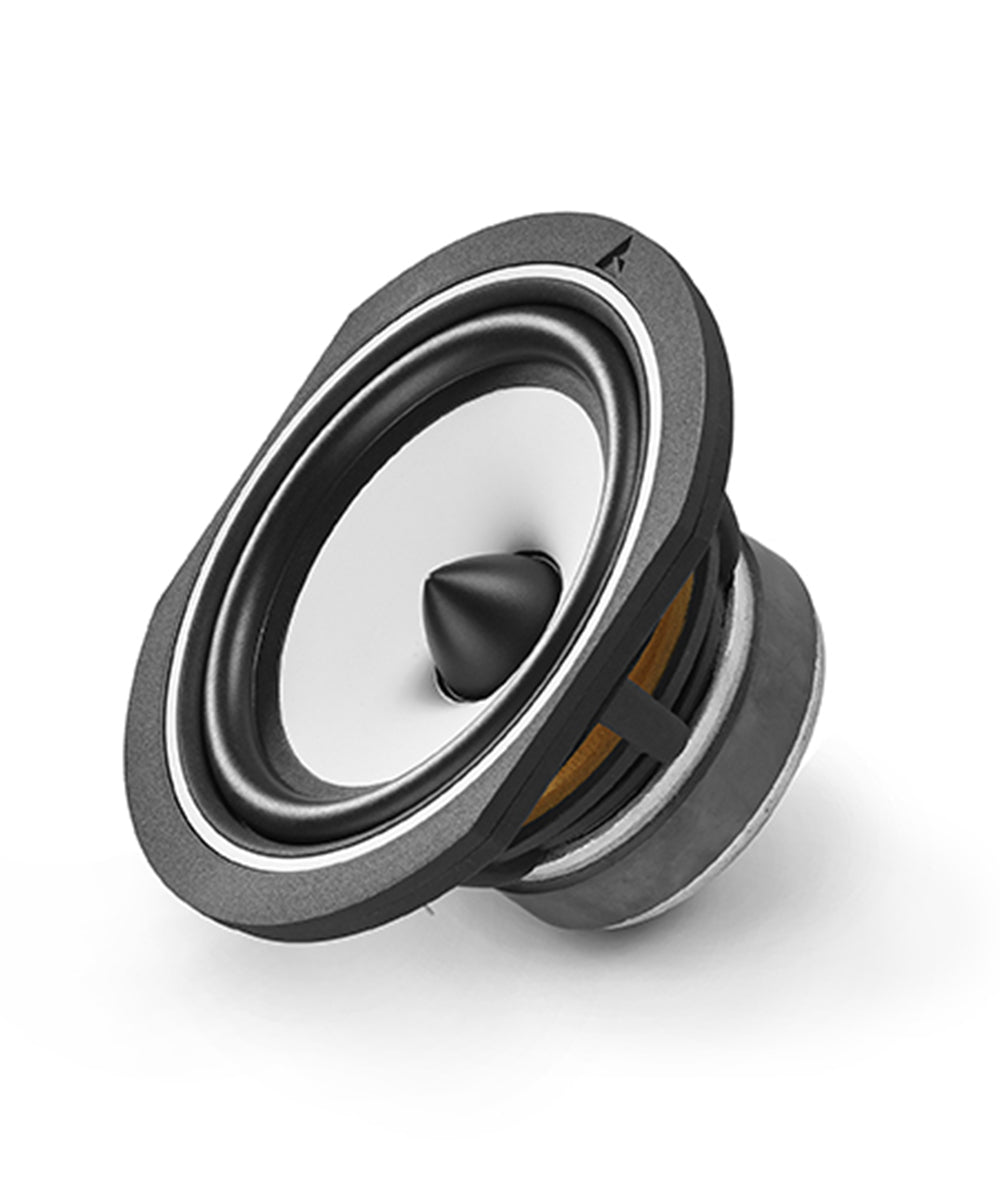

WOOFER / MIDRANGE

To sustain the TRIANGLE midrange quality, while providing deep bass, we have developed a half-roll suspension made of foam and treated rubber. It provides a dynamic performance due to the low inertia combined with the cellulose pulp cone. The profile of the cone was also redesigned and now provides an extended frequency response.

Thanks to the new suspension, the bookshelf speakers in the ESPRIT Ez range provide a generous bass, all the while remaining dynamic.

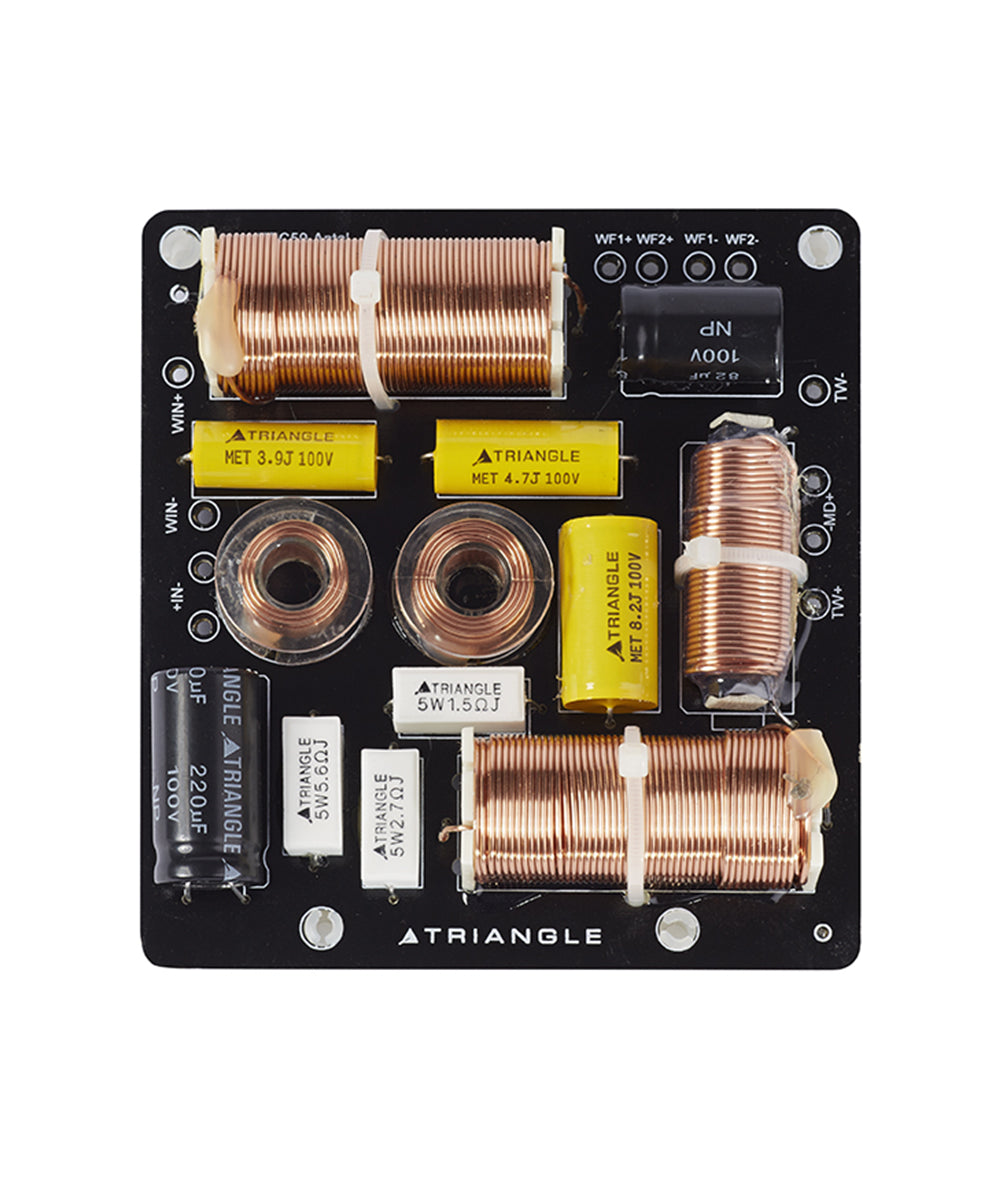

CROSSOVER & CABLES

All components used in the crossover have been selected due to their quality: copper coils with a diameter of 1mm and MET capacitors.

The signal is transferred by a TRIANGLE OFC cable, which assures resistance and quality over time.

High quality copper alloy

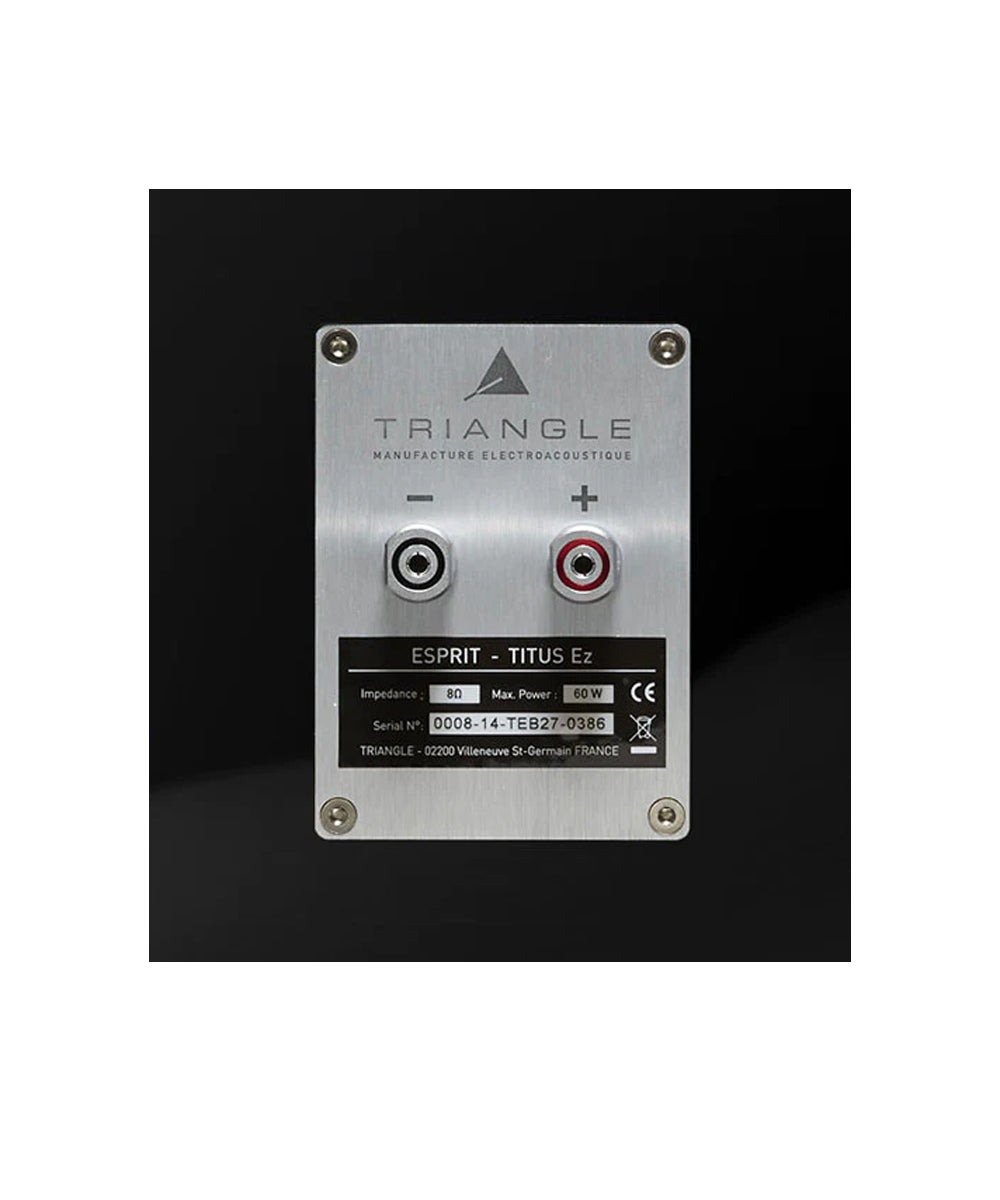

BRUSHED ALUMINIUM TERMINAL

Specially designed for ESPRIT Ez, the terminal is created in brushed aluminium, providing ease of use and extraordinary visual quality. The material prevents vibrations and seals the cabinet. Each terminal is equipped with high quality cooper binding posts with a self-locking system for banana plugs.

They can also accommodate a number of other cable choices.

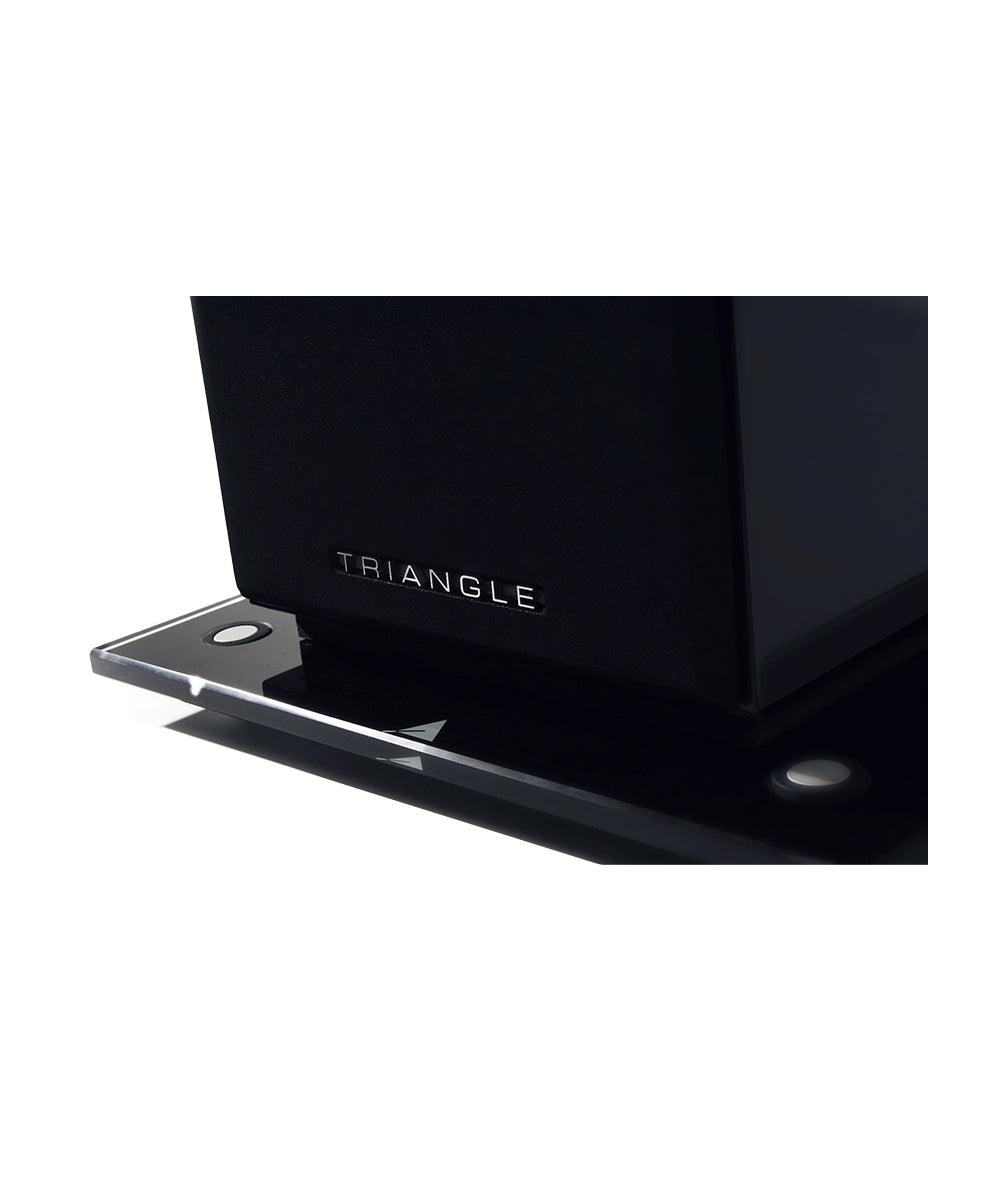

GLASS PEDESTRAL

Sitting on a glass pedestal, the GAÏA,the ANTAL and the AUSTRALE EZ offer a perfect balance between elegance and acoustic performance.

The ANTAL Ez comes with a set of rubber and adjustable aluminium spikes to assure stability and performance, adapted to the characteristics of your interior. The bookshelves and center channel models are equipped with rubber pads to decouple and protect your speakers.
